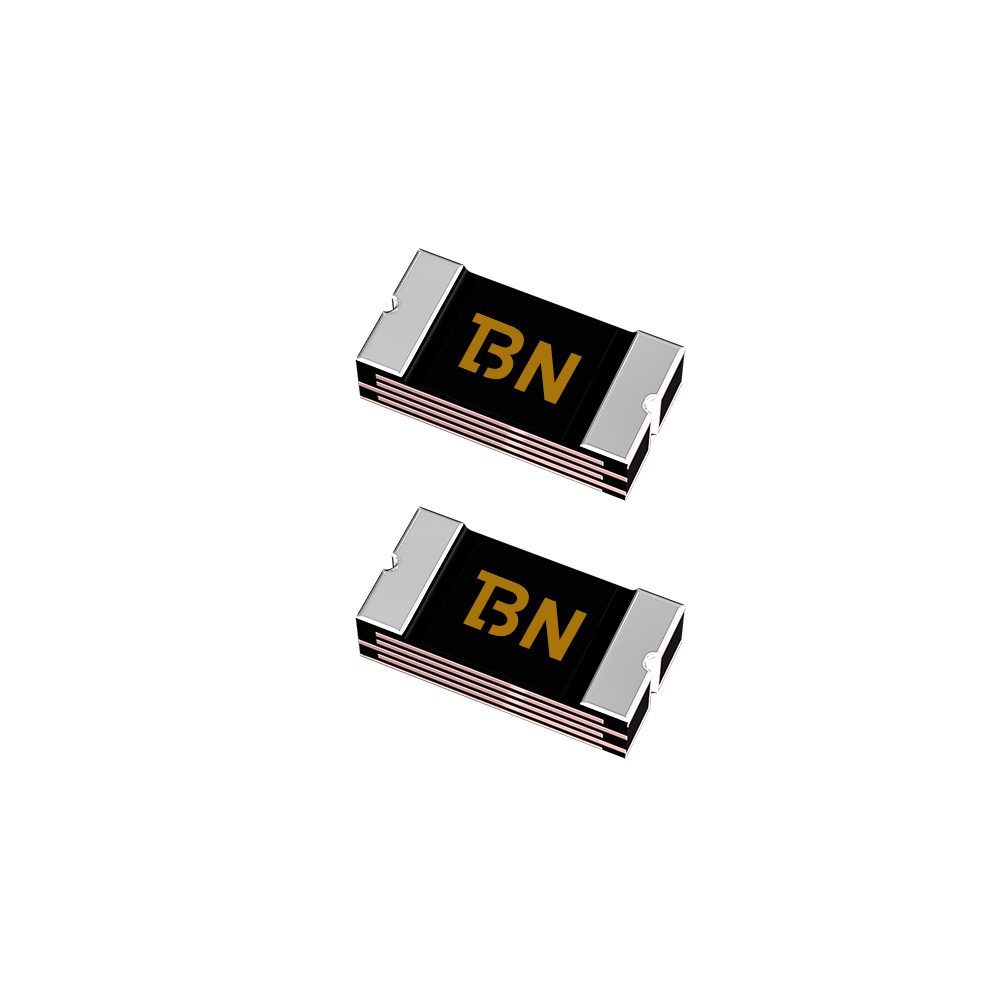

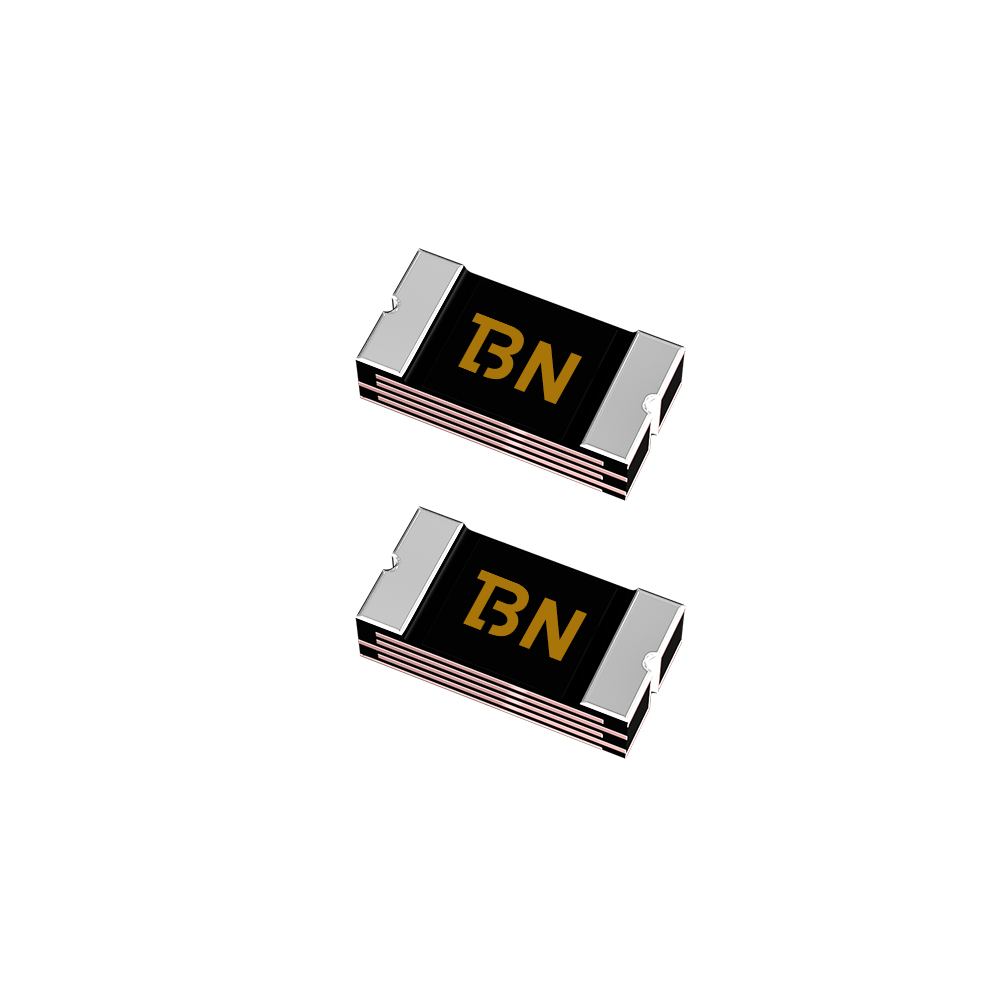

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
1206L010/60WR
Manufacturer
LittelfuseManufacturer Product Number
1206L010/60WR
Description
PTC RESET FUSE 60V 100MA 1206
Manufacturer Standard Lead Time
2-3
Detailed Description
Product Attributes
| Type | Description |
|---|---|
| Category | Boxes, Enclosures, Racks andBox Components |
| Operating Temperature | -40℃~85℃ |
| Maximum Voltage | 60V |
| Maximum Current | 10 A |
| Holding Current | 100mA |
| Maximum Operation Time | 1.5 seconds |
| Initial Resistance Value | 1.5Ω |
| Trip Current | 250mA |
| Resistance After Trip | 10Ω |
Documents & Media
| Resource Type | Link |
|---|
Environmental & Export Classifications
| Attribute | Description |
|---|
Additional Resources
| Attribute | Description |
|---|
In Stock: 821
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1+ | $ 0.2172 | |
| 100+ | $ 0.1657 | |
| 750+ | $ 0.1365 | |
| 1500+ | $ 0.1239 | |
| 3000+ | $ 0.1128 |
Price For：Each
Minimum:1/Multiple:1
Total amount:
